Spring Kafka - Producer

Kafka/Spring Kafka

Spring Kafka - Producer

재심 2023. 5. 29. 12:16

[개요]

스프링 카프카 프로듀서는 KafkaTemplate 이라는 클래스를 사용한다.

KafkaTemplate은 ProducerFactory 클래스를 통해 생성된다.

KafkaTemplate을 생성하는 방법은 "기본 템플릿" or "사용자 정의 템플릿"을 ProducerFactory로 생성하는 방법이다.

[Basic KafkaTemplate]

기본 카프카 템플릿은 application.yaml에 프로듀서 옵션을 넣기만 하면 옵션이 적용된다.

spring:
    kafka:
        producer:
            bootstrap-servers: localhost:9092
            acks: all
            enable.idempotence: true
            retries: 3
            ....

예제

기본 템플릿을 통해 "jaeshim-test"라는 토픽에 메시지를 전송하는 코드.

@SpringBootApplication
public class SpringProducerApplication implements CommandLineRunner {
  private static String TOPIC_NAME = "jaeshim-test";

  @Autowired
  private KafkaTemplate<String, String> template;

  public static void main(String[] args){
    System.out.println("RUN");
    SpringApplication application=new SpringApplication(SpringProducerApplication.class);
    application.run(args);
  }

    //단순 send
  @Override
  public void run(String... args){
    System.out.println("running");

    for(int i=0;i<10;i++){
      template.send(TOPIC_NAME,"test"+i);
      System.out.println(TOPIC_NAME+":"+i+"has been sended");
    }
//
    System.exit(0);
  }


    //콜백함수를 추가하여 전송여부를 비동기식으로 알 수도 있다.
  @Override
  public void run(String... args){
    System.out.println("running");

    ListenableFuture<SendResult<String,String>> future = template.send(TOPIC_NAME,"basic");

    future.addCallback(new KafkaSendCallback<String,String>(){
      @Override
      public void onSuccess(SendResult<String,String> result){
        System.out.println("sent topic: "+result.getRecordMetadata().topic());
        System.out.println("sent offset: "+result.getRecordMetadata().offset());
        System.out.println("sent partition: "+result.getRecordMetadata().partition());
      }
      @Override
      public void onFailure(KafkaProducerException ex){

      }

    });
    System.exit(0);
  }
}

실행결과

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.4.9)

...
2021-07-26 11:49:54.158  INFO 35684 --- [           main] o.a.k.clients.producer.ProducerConfig    : ProducerConfig values:
    acks = -1
    batch.size = 16384
    bootstrap.servers = [localhost:9092]
    buffer.memory = 33554432
    client.dns.lookup = use_all_dns_ips
    client.id = producer-1
    compression.type = none
    connections.max.idle.ms = 540000
    delivery.timeout.ms = 120000
    enable.idempotence = false
    interceptor.classes = []
    internal.auto.downgrade.txn.commit = true
    key.serializer = class org.apache.kafka.common.serialization.StringSerializer
    linger.ms = 0
    max.block.ms = 60000
    max.in.flight.requests.per.connection = 5
    max.request.size = 1048576
    metadata.max.age.ms = 300000
    metadata.max.idle.ms = 300000
    metric.reporters = []
    metrics.num.samples = 2
    metrics.recording.level = INFO
    metrics.sample.window.ms = 30000
    partitioner.class = class org.apache.kafka.clients.producer.internals.DefaultPartitioner
    receive.buffer.bytes = 32768
    reconnect.backoff.max.ms = 1000
    reconnect.backoff.ms = 50
    request.timeout.ms = 30000
    retries = 2147483647
    retry.backoff.ms = 100
    sasl.client.callback.handler.class = null
    sasl.jaas.config = null
    sasl.kerberos.kinit.cmd = /usr/bin/kinit
    sasl.kerberos.min.time.before.relogin = 60000
    sasl.kerberos.service.name = null
    sasl.kerberos.ticket.renew.jitter = 0.05
    sasl.kerberos.ticket.renew.window.factor = 0.8
    sasl.login.callback.handler.class = null
    sasl.login.class = null
    sasl.login.refresh.buffer.seconds = 300
    sasl.login.refresh.min.period.seconds = 60
    sasl.login.refresh.window.factor = 0.8
    sasl.login.refresh.window.jitter = 0.05
    sasl.mechanism = GSSAPI
    security.protocol = PLAINTEXT
    security.providers = null
    send.buffer.bytes = 131072
    ssl.cipher.suites = null
    ssl.enabled.protocols = [TLSv1.2, TLSv1.3]
    ssl.endpoint.identification.algorithm = https
    ssl.engine.factory.class = null
    ssl.key.password = null
    ssl.keymanager.algorithm = SunX509
    ssl.keystore.location = null
    ssl.keystore.password = null
    ssl.keystore.type = JKS
    ssl.protocol = TLSv1.3
    ssl.provider = null
    ssl.secure.random.implementation = null
    ssl.trustmanager.algorithm = PKIX
    ssl.truststore.location = null
    ssl.truststore.password = null
    ssl.truststore.type = JKS
    transaction.timeout.ms = 60000
    transactional.id = null
    value.serializer = class org.apache.kafka.common.serialization.StringSerializer

2021-07-26 11:49:54.205  INFO 35684 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka version: 2.6.2
2021-07-26 11:49:54.205  INFO 35684 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka commitId: da65af02e5856e34
2021-07-26 11:49:54.205  INFO 35684 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka startTimeMs: 1627267794205
2021-07-26 11:49:54.346  INFO 35684 --- [ad | producer-1] org.apache.kafka.clients.Metadata        : [Producer clientId=producer-1] Cluster ID: ZL-0SzhnRwCYxBnL69ZofA
2021-07-26 11:49:54.361  INFO 35684 --- [extShutdownHook] o.a.k.clients.producer.KafkaProducer     : [Producer clientId=producer-1] Closing the Kafka producer with timeoutMillis = 30000 ms.
sent topic: jaeshim-test
sent offset: 95
sent partition: 1

Process finished with exit code 0

send 오버로딩 메서드들

send(String topic,K key, V data): 키, 값을 전달
send(String topic,Integer partition,K key, V data): 키, 값과 특정 파티션으로 전달
send(String topic,Integer partition, Long timestamp,K key, V data): 타임스탬프까지 포함
send(ProducerRecord<K,V> record): ProducerRecord 객체를 전송

[Custom KafkaTemplate]

커스텀 카프카 템플릿은 프로듀서 팩토리를 통해 만든 카프카 객체를 빈으로 등록하여 사용하는 것.

하나의 애플리케이션 안에 여러 종류의 템플릿이 필요하다면 커스텀으로 정의해서 사용한다고 한다.

ex) 하나의 애플리케이션에서 2개의 클러스터를 호출해야할 때 여러개의 커스텀을 만들고 용도에 맞게 주입받아 사용

예제

@Configuration
public class KafkaTemplateConfiguration {

    //KafkaTemplate객체를 리턴
  @Bean
  public KafkaTemplate<String,String> customKafkaTemplate(){
    Map<String,Object> props = new HashMap<>();

    //필요한 config를 직접 입력
    props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG,"localhost:9092");
    props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
    props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class);

    props.put(ProducerConfig.ACKS_CONFIG,"all");

    //팩토리를 사용하여 KafkaTemplate을 생성한다.
    ProducerFactory<String,String> pf = new DefaultKafkaProducerFactory<>(props);

    return new KafkaTemplate<>(pf);
  }
}

@SpringBootApplication
public class SpringProducerCustomApplication implements CommandLineRunner {

  private static String TOPIC_NAME = "jaeshim-test";

  @Autowired
  private KafkaTemplate<String,String> customKafkaTemplate;

  public static void main(String[] args){
    SpringApplication application = new SpringApplication(SpringProducerCustomApplication.class);
    application.run(args);
  }

  @Override

  public void run(String... args){
    //custom으로 정의한 카프카 템플릿을 이용한다.
    ListenableFuture<SendResult<String,String>> future = customKafkaTemplate.send(TOPIC_NAME,"custom");

    System.out.println("RUN CUSTOM APPLICATION");

    //콜백 함수를 통해 프로듀서가 보낸 데이터의 브로커 적재여부를 확인할 수 있다.
    future.addCallback(new KafkaSendCallback<String,String>(){
      @Override
      public void onSuccess(SendResult<String,String> result){
        System.out.println("sent topic: "+result.getRecordMetadata().topic());
        System.out.println("sent offset: "+result.getRecordMetadata().offset());
        System.out.println("sent partition: "+result.getRecordMetadata().partition());
      }
      @Override
      public void onFailure(KafkaProducerException ex){

      }

    });
  }

}

실행결과

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.4.9)

...
2021-07-26 11:45:27.408  INFO 51268 --- [           main] o.a.k.clients.producer.ProducerConfig    : ProducerConfig values:
    acks = -1
    batch.size = 16384
    bootstrap.servers = [localhost:9092]
    buffer.memory = 33554432
    client.dns.lookup = use_all_dns_ips
    client.id = producer-1
    compression.type = none
    connections.max.idle.ms = 540000
    delivery.timeout.ms = 120000
    enable.idempotence = false
    interceptor.classes = []
    internal.auto.downgrade.txn.commit = true
    key.serializer = class org.apache.kafka.common.serialization.StringSerializer
    linger.ms = 0
    max.block.ms = 60000
    max.in.flight.requests.per.connection = 5
    max.request.size = 1048576
    metadata.max.age.ms = 300000
    metadata.max.idle.ms = 300000
    metric.reporters = []
    metrics.num.samples = 2
    metrics.recording.level = INFO
    metrics.sample.window.ms = 30000
    partitioner.class = class org.apache.kafka.clients.producer.internals.DefaultPartitioner
    receive.buffer.bytes = 32768
    reconnect.backoff.max.ms = 1000
    reconnect.backoff.ms = 50
    request.timeout.ms = 30000
    retries = 2147483647
    retry.backoff.ms = 100
    sasl.client.callback.handler.class = null
    sasl.jaas.config = null
    sasl.kerberos.kinit.cmd = /usr/bin/kinit
    sasl.kerberos.min.time.before.relogin = 60000
    sasl.kerberos.service.name = null
    sasl.kerberos.ticket.renew.jitter = 0.05
    sasl.kerberos.ticket.renew.window.factor = 0.8
    sasl.login.callback.handler.class = null
    sasl.login.class = null
    sasl.login.refresh.buffer.seconds = 300
    sasl.login.refresh.min.period.seconds = 60
    sasl.login.refresh.window.factor = 0.8
    sasl.login.refresh.window.jitter = 0.05
    sasl.mechanism = GSSAPI
    security.protocol = PLAINTEXT
    security.providers = null
    send.buffer.bytes = 131072
    ssl.cipher.suites = null
    ssl.enabled.protocols = [TLSv1.2, TLSv1.3]
    ssl.endpoint.identification.algorithm = https
    ssl.engine.factory.class = null
    ssl.key.password = null
    ssl.keymanager.algorithm = SunX509
    ssl.keystore.location = null
    ssl.keystore.password = null
    ssl.keystore.type = JKS
    ssl.protocol = TLSv1.3
    ssl.provider = null
    ssl.secure.random.implementation = null
    ssl.trustmanager.algorithm = PKIX
    ssl.truststore.location = null
    ssl.truststore.password = null
    ssl.truststore.type = JKS
    transaction.timeout.ms = 60000
    transactional.id = null
    value.serializer = class org.apache.kafka.common.serialization.StringSerializer

2021-07-26 11:45:27.455  INFO 51268 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka version: 2.6.2
2021-07-26 11:45:27.455  INFO 51268 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka commitId: da65af02e5856e34
2021-07-26 11:45:27.455  INFO 51268 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka startTimeMs: 1627267527455
2021-07-26 11:45:27.596  INFO 51268 --- [ad | producer-1] org.apache.kafka.clients.Metadata        : [Producer clientId=producer-1] Cluster ID: ZL-0SzhnRwCYxBnL69ZofA
RUN CUSTOM APPLICATION
2021-07-26 11:45:27.611  INFO 51268 --- [extShutdownHook] o.a.k.clients.producer.KafkaProducer     : [Producer clientId=producer-1] Closing the Kafka producer with timeoutMillis = 30000 ms.
sent topic: jaeshim-test
sent offset: 92
sent partition: 0

[JSON Serializer로 객체단위의 이벤트 처리]

참조: https://sup2is.github.io/2020/06/03/spring-boot-with-kafka-cluster.html

json serializer를 적용하여 객체단위로 이벤트를 발행하고, 리스너에서도 객체 단위로 읽고 처리할 수 있도록 하려는 목적.

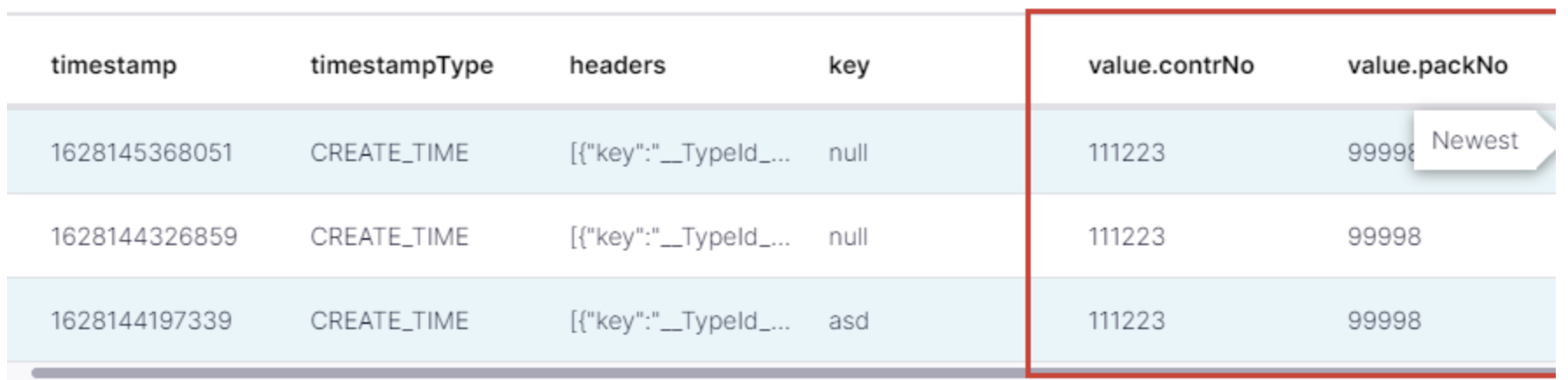

객체 단위로 메시지를 발행하면 C3에서 아래처럼 구분되어 조회된다.

예제: OrderEvent 라는 객체를 구성하고 OrderEvent단위로 이벤트를 발행해본다

OrderEvent는 주문번호로 구성된다고 가정한다.

OrderEvent

@Value
@Builder
@JsonDeserialize(builder = OrderEvent.OrderEventBuilder.class)
public class OrderEvent {
  @NotBlank(message = "orderNo is empty")
  private String orderNo;

  @JsonPOJOBuilder(withPrefix = "")
  public static class OrderEventBuilder {
  }
}

ProducerConfig

@Configuration
public class KafkaProducerTemplateConfiguration {
  @Value("${spring.kafka.producer.bootstrap-servers}")
  public String servers;

  @Bean
  public ProducerFactory<String, OrderEvent> producerFactory(){
    Map<String,Object> configProps=producerFactoryConfig();
    return new DefaultKafkaProducerFactory<>(configProps);
  }

  private Map<String,Object> producerFactoryConfig(){
    Map<String,Object> configProps = new HashMap<>();
    configProps.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG,servers);
    configProps.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class);
    configProps.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, JsonSerializer.class);

    return configProps;
  }

  @Bean
  public KafkaTemplate<String,OrderEvent> customJsontemplate(){
    return new KafkaTemplate<>(producerFactory());
  }
}

Producer

@SpringBootApplication
public class SpringProducerWithSerialize implements CommandLineRunner {
  private static String TOPIC_NAME = "jaeshim-test-json";


  @Autowired
  private KafkaTemplate<String,OrderEvent> customJsontemplate;

  public static void main(String[] args) {
    System.out.println("RUN");
    SpringApplication application = new SpringApplication(SpringProducerWithSerialize.class);
    application.run(args);
  }

  @Override
  public void run(String... args) {
    #샘플 데이터
    final var orderNo = "211225";

    #위에서 선언한 템플릿을 사용하여 send
    ListenableFuture<SendResult<String, OrderEvent>> future = customJsontemplate.send(
        MessageBuilder.withPayload( OrderEvent.builder().orderNo(orderNo)
            .build())
            .setHeader(KafkaHeaders.MESSAGE_KEY, null)
            .setHeader(KafkaHeaders.TOPIC, TOPIC_NAME)
            .build());

    #콜백함수로 결과받기
    future.addCallback(new ListenableFutureCallback<SendResult<String, OrderEvent>>() {
      @Override
      public void onSuccess(SendResult<String, OrderEvent> result) {
        System.out.println("sent topic: " + result.getRecordMetadata().topic());
        System.out.println("sent offset: " + result.getRecordMetadata().offset());
        System.out.println("sent partition: " + result.getRecordMetadata().partition());
      }

      @Override
      public void onFailure(Throwable ex) {
        System.err.println(ex.getMessage());
      }

    });
    System.out.println("message processed");
  }
}

결과

value.serializer = class org.springframework.kafka.support.serializer.JsonSerializer로 적용된 것을 알 수 있다.

 .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::                (v2.4.9)

...
2021-08-05 16:00:07.412  INFO 2056 --- [           main] o.a.k.clients.producer.ProducerConfig    : ProducerConfig values:
    acks = -1
    batch.size = 16384
    bootstrap.servers = [localhost:9092]
    buffer.memory = 33554432
    client.dns.lookup = use_all_dns_ips
    client.id = producer-1
    compression.type = none
    connections.max.idle.ms = 540000
    delivery.timeout.ms = 120000
    enable.idempotence = false
    interceptor.classes = []
    internal.auto.downgrade.txn.commit = true
    key.serializer = class org.apache.kafka.common.serialization.StringSerializer
    linger.ms = 0
    max.block.ms = 60000
    max.in.flight.requests.per.connection = 5
    max.request.size = 1048576
    metadata.max.age.ms = 300000
    metadata.max.idle.ms = 300000
    metric.reporters = []
    metrics.num.samples = 2
    metrics.recording.level = INFO
    metrics.sample.window.ms = 30000
    partitioner.class = class org.apache.kafka.clients.producer.internals.DefaultPartitioner
    receive.buffer.bytes = 32768
    reconnect.backoff.max.ms = 1000
    reconnect.backoff.ms = 50
    request.timeout.ms = 30000
    retries = 2147483647
    retry.backoff.ms = 100
    sasl.client.callback.handler.class = null
    sasl.jaas.config = null
    sasl.kerberos.kinit.cmd = /usr/bin/kinit
    sasl.kerberos.min.time.before.relogin = 60000
    sasl.kerberos.service.name = null
    sasl.kerberos.ticket.renew.jitter = 0.05
    sasl.kerberos.ticket.renew.window.factor = 0.8
    sasl.login.callback.handler.class = null
    sasl.login.class = null
    sasl.login.refresh.buffer.seconds = 300
    sasl.login.refresh.min.period.seconds = 60
    sasl.login.refresh.window.factor = 0.8
    sasl.login.refresh.window.jitter = 0.05
    sasl.mechanism = GSSAPI
    security.protocol = PLAINTEXT
    security.providers = null
    send.buffer.bytes = 131072
    ssl.cipher.suites = null
    ssl.enabled.protocols = [TLSv1.2, TLSv1.3]
    ssl.endpoint.identification.algorithm = https
    ssl.engine.factory.class = null
    ssl.key.password = null
    ssl.keymanager.algorithm = SunX509
    ssl.keystore.location = null
    ssl.keystore.password = null
    ssl.keystore.type = JKS
    ssl.protocol = TLSv1.3
    ssl.provider = null
    ssl.secure.random.implementation = null
    ssl.trustmanager.algorithm = PKIX
    ssl.truststore.location = null
    ssl.truststore.password = null
    ssl.truststore.type = JKS
    transaction.timeout.ms = 60000
    transactional.id = null
    value.serializer = class org.springframework.kafka.support.serializer.JsonSerializer

2021-08-05 16:00:07.474  INFO 2056 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka version: 2.6.2
2021-08-05 16:00:07.474  INFO 2056 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka commitId: da65af02e5856e34
2021-08-05 16:00:07.474  INFO 2056 --- [           main] o.a.kafka.common.utils.AppInfoParser     : Kafka startTimeMs: 1628146807474
2021-08-05 16:00:07.599  INFO 2056 --- [ad | producer-1] org.apache.kafka.clients.Metadata        : [Producer clientId=producer-1] Cluster ID: ZL-0SzhnRwCYxBnL69ZofA
message processed
2021-08-05 16:00:07.631  INFO 2056 --- [extShutdownHook] o.a.k.clients.producer.KafkaProducer     : [Producer clientId=producer-1] Closing the Kafka producer with timeoutMillis = 30000 ms.
sent topic: jaeshim-test-json
sent offset: 18
sent partition: 0

Process finished with exit code 0

저작자표시

'Kafka > Spring Kafka' 카테고리의 다른 글

높은 버전의 kafka 라이브러리에서 압축된 메시지를 낮은 버전의 라이브러리에서 consuming할 수 없는 이슈 (0)	2023.06.20
Spring Kafka (0)	2023.05.29

현재글Spring Kafka - Producer

springframework, Kafka, HTTP, MongoDB, Schema-Registry, Producer, consumer, logstash, MVC, elasticsearch, springboot, Spring, Kotlin, Kubernetes, Helm, web, Algorithm, java, connect, Broker,

Today :
Yesterday :

잼의 이것저것
